SNS Series｜Solid Frame Crank Press

This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical Robot or added with transfer system.

Model : SNS1-80~500 / SNS2-160~1200

Q'ty :

Catalogs

# Tandem Press Line

# Blanking Line

# Progressive Die

# Tonnage(kN) <3000

# Tonnage(kN) 3000~6500

# Stroke Length 300↓

# Stroke Length 300~450

# Bolster Area(L-R) 2500↓

# Bolster Area(L-R) 2500~3400

Unitized straight side frame, “Quick to Ship” , and no angular deflection of C frame press.

Good for precision or progressive dies, and longer die life.

Compliance with US-Europe-China safety guideline.

Easy to linked with kinds of ancillary automation equipments for mass production.

S/H/P Type

Engineered for versatility across a wide range of stamping applications, the series is available in three stroke rate ranges (i.e., S, H, and P Type), providing greater flexibility to meet diverse stamping speed and productivity requirements.

LT Type

Expansive Workspace:

Featuring an enlarged size of both the slide and the bolster area, the design provides flexibility and efficiency for large-surface workpieces.

Structure Optimized for Large Sheet Feeding:

Wider window openings and an extended slide stroke easily handle large sheet metal. The structural design perfectly integrates with automation for the high-efficiency press line planning.

Versatile Industry Applications:

Ideal for precision processing of thin sheets and large components. It is widely used in home appliances, consumer electronics, EV battery enclosures, and HVAC systems.

SI Unit
Imperial Unit

Model		SNS1-80			SNS1-110			SNS1-160
Type		S	H	P	S	H	P	S	H	P
Capacity	kN	800			1100			1600
Stroke Length	mm	150	100	60	180	110	70	200	130	80
Strokes per Minute	SPM	40~75	55~125	75~150	35~65	50~110	65~135	30~55	40~95	55~115
Tonnage Rating Point	mm	5		3.2	5		3.2	6		4
Die Height	mm	330	300		350	320		400	360
Slide Adjustment	mm	80			90			100
Slide Area(LRxFB)	mm	700x460			800x520			900x580
Diameter of Shank Hole	mm	ø50.8			ø50.8			ø65
Bolster Area(LRxFB)	mm	900x680	900x460		1000x680	1000x520		1150x760	1150x600
Bolster Thickness	mm	140			155			165
Bolster Height(w/o Mounts)	mm	900			900			940	900
Main Motor(Fixed Speed+Inverter)	kW x P	7.5x4			11x4			15x4
Slide Adjustment Motor	kW x P	0.4x4			0.4x4			0.7x4
Window Opening(FBxUD)	mm	440x280	370x250		500x300	420x270		560x350	470x310
Foot Print	mm	1430x1470	1430x1420		1560x1600	1560x1550		1720x1780	1720x1730
Floor Space Required	mm	1630x1740			1765x1875			1905x2055
Press Height(w/o Mounts)	mm	2765			3000			3320	3280
Max. Upper Die Weight	kg	300			400			400
Required Air Pressure	MPa	0.5			0.5			0.5
Die Cushion (Option)
Capacity	kN	60	-	-	60	-	-	80	-	-
Stroke Length	mm	95	-	-	95	-	-	110	-	-
Cushion Pad Area (LR × FB)	mm	480x340	-	-	480x340	-	-	560x370	-	-

Model			SNS1-200				SNS1-250
Type			S	H	p	LT	S	H	p	LT
Capacity		kN	2000				2500
Stroke Length		mm	220	150	90	350	250	180	100	350
Strokes per Minute		SPM	25~45	35~80	45~95	20~40	22~40	30~60	35~80	20~40
Tonnage Rating Point		mm	6		4	6	6		4	6
Die Height		mm	450	400		600	450	400		600
Slide Adjustment		mm	110			120	120
Slide Area(LRxFB)	1	mm	1000x650			1200×1100	1100x720			1200×1100
	2					1500×1100				1500×1100
Diameter of Shank Hole		mm	ø65				ø65
Bolster Area(LRxFB)	1	mm	1250x840	1250x680		1500×1200	1350x900	1350x750		1500×1200
	2					1800×1200				1800×1200
Bolster Thickness		mm	180				180
Bolster Height(w/o Mounts)		mm	1020	1000		-	1020	1000		-
Main Motor(Fixed Speed+Inverter)		kW x P	18.5x4				22x4
Slide Adjustment Motor		kW x P	0.7x4				0.7x4
Window Opening(FBxUD)		mm	620x400	520x350		1100×700	680x400	570x350		1100×700
Foot Print	1	mm	1870x1980	1870x1930		2230×2000	1990x2150	1990x2100		2530×2140
	2					2420×2000				2830×2140
Floor Space Required	1	mm	2055x2245			2305×2908	2175x2500			2890×3048
	2					2605×2908				3190×3048
Press Height(w/o Mounts)		mm	3740	3720		4530	4020	4000		4810
Max. Upper Die Weight		kg	800			1000	1000			1200
Required Air Pressure		MPa	0.5				0.5
Die Cushion (Option)
Capacity		kN	100	-	-	-	100	-	-	-
Stroke Length		mm	130	-	-	-	130	-	-	-
Cushion Pad Area (LR × FB)		mm	700x450	-	-	-	700x450	-	-	-

Model			SNS1-300			SNS1-400			SNS1-500
Type			S	H	LT	S	H	LT	LT
Capacity		kN	3000			4000			5000
Stroke Length		mm	280	180	400	300	200	400	400
Strokes per Minute		SPM	20~35	25~50	20~40	20~40	25~50	20~40	20~40
Tonnage Rating Point		mm	6		7	6		7	7
Die Height		mm	500	400	600	550	450	600	600
Slide Adjustment		mm	120			120			120
Slide Area(LRxFB)	1	mm	1150×800		1500×1400	1250×900		1500×1400	1800×1400
	2				1800×1400			1800×1400	2100×1400
Diameter of Shank Hole		mm	ø65			ø65			ø65
Bolster Area(LRxFB)	1	mm	1400x1050	1400x850	1800×1500	1500×1200	1500×1000	1800×1500	2100×1500
	2				2100×1500			2100×1500	2400×1500
Bolster Thickness		mm	200			200			200
Bolster Height(w/o Mounts)		mm	1040	1020	-	1040	1020	-	-
Main Motor(Fixed Speed+Inverter)		kW x P	30x4			37×4			45×4
Slide Adjustment Motor		kW x P	1.5×4			1.5×4			1.5×4
Window Opening(FBxUD)		mm	760x450	650x350	1400×700	820×450	720×400	1400×700	1400×700
Foot Print	1	mm	2070x2297	2070x2247	2830×2290	2170×2285	2170×2235	2830×2310	3130×2310
	2				3130×2290			3130×2310	3430×2310
Floor Space Required	1	mm	2255×2580		3190×3198	2350×2830		3190×3218	3490×3218
	2				3490×3198			3490×3218	3790×3218
Press Height(w/o Mounts)		mm	4200	4030	4990	4350	4250	5140	5290
Max. Upper Die Weight		kg	1250		1500	1250		2000	2000
Required Air Pressure		MPa	0.5			0.5			0.5
Die Cushion (Option)
Capacity		kN	140	-	-	140	-	-	-
Stroke Length		mm	140	-	-	140	-	-	-
Cushion Pad Area (LR × FB)		mm	700x450	-	-	700x450	-	-	-

Model		SNS2-160		SNS2-200		SNS2-250
Type		S	H	S	H	S		H	LT
Capacity	kN	1600		2000		2500
Stroke Length	mm	200	130	230	150	250		180	350
Strokes per Minute	SPM	30~55	40~85	25~45	35~70	22~40		30~60	22~40
Tonnage Rating Point	mm	6	4	7	4	7		5	6
Die Height	mm	450	400	500	450	550		450	600
Slide Adjustment	mm	100		100		120
Slide Area(LRxFB)	mm	1560×650		1850×750		1	2200×820		2200×1200
						2	2500×820		2500×1200
Diameter of Shank Hole	mm	Φ51x3		Φ51x3		Φ51x3
Bolster Area(LRxFB)	mm	1850×760		2200×840		1	2500×920		2500×1300
						2	2800×920		2800×1300
Bolster Thickness	mm	160		170		180
Bolster Height(w/o Mounts)	mm	950		1000		1	1100		-
						2	1150
Main Motor(Fixed Speed+Inverter)	kW×P	15x4		18.5x4		22x4
Slide Adjustment Motor	kW×P	1.5x4		1.5x4		1.5x4
Window Opening(FB)	mm	660		740		820			1200
Window Opening(UD)	mm	400	320	450	350	460		350	700
Foot Print	mm	2600×1430		2930×1650		1	3290×1790		3290×1790
						2	3690×1790		3690×1790
Floor Space Required	mm	2705×2345		3045×2490		1	3390×2555		3390×2725
						2	3790×2555		3790×2725
Press Height(w/o Mounts)	mm	3510	3450	3885	3830	1	4180	4050	4500
						2	4230	4100	4550
Max. Upper Die Weight	kg	1400		2000		2200			2500
						2500
Required Air Pressure	MPa	0.6		0.6		0.6
Die Cushion (Option)
Capacity	kN	80x2	-	100x2	-	140x2		-	-
Stroke Length	mm	110	-	130	-	140		-	-
Cushion Pad Area (LR × FB)	mm	560x370x2	-	700x450x2	-	700x450x2		-	-

Model		SNS2-300						SNS2-400
Type		S		H		LT		S		H		LT
Capacity	kN	3000						4000
Stroke Length	mm	280		180		350		300		200		400
Strokes per Minute	SPM	20~40		25~50		20~40		20~40		25~50		20~40
Tonnage Rating Point	mm	7		5		6		7		6		6
Die Height	mm	550		450		600		600		450		600
Slide Adjustment	mm	120						120
Slide Area(LRxFB)	mm	1	2200×900			1	2200×1400	1	2200×1000			1	2200×1400
		2	2500×900					2	2500×1000
		3	2800×900			2	2500×1400	3	2800×1000			2	2500×1400
		4	3100×900					4	3100×1000
Diameter of Shank Hole	mm	Φ51x3						Φ51x3
Bolster Area(LRxFB)	mm	1	2500×1000			1	2500×1500	1	2500×1100			1	2500×1500
		2	2800×1000					2	2800×1100
		3	3100×1000			2	2800×1500	3	3100×1100			2	2800×1500
		4	3400×1000					4	3400×1100
Bolster Thickness	mm	200						200
Bolster Height(w/o Mounts)	mm	1	1150			-		1250				-
		2
		3	1250
		4
Main Motor(Fixed Speed+Inverter)	kW×P	30x4						37x4
Slide Adjustment Motor	kW×P	1.5x4						1.5x4
Window Opening(FB)	mm	900				1400		1000				1400
Window Opening(UD)	mm	500		350		750		550		400		750
Foot Print	mm	1	3390×1870			1	3390×2150	1	3410×2070			1	3410×2170
		2	3690×1870					2	3710×2070
		3	4000×1870			2	3690×2150	3	4010×2070			2	3710×2170
		4	4300×1870					4	4310×2070
Floor Space Required	mm	1	3490×2665			1	3490×2815	1	3545×2955			1	3545×3070
		2	3790×2665					2	3845×2955
		3	4100×2575			2	3790×2815	3	4145×2955			2	3845×3070
		4	4400×2575					4	4445×2955
Press Height (w/o Mounts)	mm	1	4505		4355	1	4640	1	4820		4565	1	4715
		2						2
		3	4620		4470	2		3	4865		4715	2
		4						4
Max. Upper Die Weight	kg	1	2800			1	3200	1	3000			1	3200
		2						2
		3	3000			2		3	3200			2
		4						4
Required Air Pressure	MPa	0.6						0.6
Die Cushion (Option)
Capacity	kN	140×2		-		-		140×2		-		-
Stroke Length	mm	140		-		-		140		-		-
Cushion Pad Area (LR × FB)	mm	700×450×2		-		-		700×450×2		-		-

Model		SNS2-500					SNS2-600	SNS2-800	SNS2-1000
Type		S		H	LT		LT	LT	LT
Capacity	kN	5000					6000	8000	10000
Stroke Length	mm	300		200	400		400	400	400
Strokes per Minute	SPM	20~40		25~50	20~40		20~35	20~35	20~35
Tonnage Rating Point	mm	7		6	6		6	6	6
Die Height	mm	600		450	600		650	650	650
Slide Adjustment	mm	120			120		150	150	150
Slide Area(LRxFB)	mm	1	2200×1100		1	2200×1400	3100×1500	3100×1500	3100×1700
		2	2500×1100
		3	2800×1100		2	2500×1400
		4	3100×1100
Diameter of Shank Hole	mm	Φ51x3					-
Bolster Area(LRxFB)	mm	1	2500×1200		1	2500×1500	3200×1500	3200×1500	3200×1700
		2	2800×1200
		3	3100×1200		2	2800×1500
		4	3400×1200
Bolster Thickness	mm	200					200	200	200
Bolster Height (w/o Mounts)	mm	1250			-		-	-	-
Main Motor (Fixed Speed+Inverter)	kW×P	45×4					55×4	75×4	90×4
Slide Adjustment Motor	kW×P	1.5×4					3.7×6	3.7×6	3.7×6
Window Opening(FB)	mm	1100			1400		1400	1400	1400
Window Opening(UD)	mm	550		400	750		750	750	750
Foot Print	mm	1	3670×2170		1	3670×2170	4640×3170	4880×2850	4880×2850
		2	3970×2170
		3	4050×2170		2	3970×2170
		4	4350×2170
Floor Space Required	mm	1	3800×3210		1	3800×3200	4800×4100	5200×4150	7100×4500
		2	4100×3210
		3	4180×3210		2	4100×3200
		4	4480×3210
Press Height (w/o Mounts)	mm	1	5020	4770	5065		5860	6300	6800
		2
		3
		4
Max. Upper Die Weight	kg	1	3200		3200		5000	7000	7000
		2
		3	3400
		4
Required Air Pressure	MPa	0.6					0.6	0.6	0.6
Die Cushion (Option)
Capacity	kN	140×2		-	-		-	-	-
Stroke Length	mm	140		-	-		-	-	-
Cushion Pad Area (LR × FB)	mm	700×450×2		-	-		-	-	-

※ For special specifications or requirements of 1000 tons or above, please contact your local supplier.
※ This specification is subject to change without notice.

Model		SNS1-88			SNS1-121			SNS1-176
Type		S	H	P	S	H	P	S	H	P
Capacity	U.S. ton	88			121			176
Stroke Length	in	5.91	3.94	2.36	7.09	4.33	2.76	7.87	5.12	3.15
Strokes per Minute	SPM	40~75	55~125	75~150	35~65	50~110	65~135	30~55	40~95	55~115
Tonnage Rating Point	in	0.2		0.13	0.2		0.13	0.24		0.16
Die Height	in	12.99	11.81		13.78	12.6		15.75	14.17
Slide Adjustment	in	3.15			3.54			3.94
Slide Area(LRxFB)	in	27.56×18.11			31.50×20.47			35.43×22.83
Diameter of Shank Hole	in	Φ2.00			Φ2.00			Φ2.56
Bolster Area(LRxFB)	in	35.43×26.77	35.43×18.11		39.37×26.77	39.37×20.47		45.28×29.92	45.28×23.62
Bolster Thickness	in	5.51			6.10			6.50
Bolster Height(w/o Mounts)	in	35.43			35.43			37.01	35.43
Main Motor(Fixed Speed+Inverter)	HP x P	10×4			15×4			20×4
Slide Adjustment Motor	HP x P	0.5×4			0.5×4			1×4
Window Opening(FBxUD)	in	17.32×11.02	14.57×9.84		19.69×11.81	16.54×10.63		22.05×13.78	18.50×12.20
Foot Print	in	56.30×57.87	56.30×55.91		61.42×62.99	61.42×61.02		67.72×70.08	67.72×68.11
Floor Space Required	in	64.17×68.50			69.49×73.82			75.00×80.91
Press Height(w/o Mounts)	in	108.86			118.11			130.71	129.13
Max. Upper Die Weight	LBS	661			882			882
Required Air Pressure	PSI	71			71			71
Die Cushion (Option)
Capacity	U.S. ton	6.6	-	-	6.6	-	-	8.8	-	-
Stroke Length	in	3.74	-	-	3.74	-	-	4.33	-	-
Cushion Pad Area (LR × FB)	in	18.90×13.39	-	-	18.90×13.39	-	-	22.05×14.57	-	-

Model			SNS1-220				SNS1-275
Type			S	H	p	LT	S	H	p	LT
Capacity		U.S. ton	220				275
Stroke Length		inch	8.66	5.91	3.54	13.78	9.84	7.09	3.94	13.78
Strokes per Minute		SPM	25~45	35~80	45~95	20~40	22~40	30~60	35~80	20~40
Tonnage Rating Point		inch	0.24		0.16	0.24	0.24		0.16	0.24
Die Height		inch	17.72	15.75		24	17.72	15.75		24
Slide Adjustment		inch	4.33			4.72	4.72
Slide Area(LRxFB)	1	inch	39.37×25.59			47.24×43.31	43.31×28.35			47.24×43.31
	2					59.06×43.31				59.06×43.31
Diameter of Shank Hole		inch	Φ2.56				Φ2.56
Bolster Area(LRxFB)	1	inch	49.21×33.07	49.21×26.77		59.06×47.24	53.15×35.43	53.15×29.53		59.06×47.24
	2					70.87×47.24				70.87×47.24
Bolster Thickness		inch	7.09				7.09
Bolster Height(w/o Mounts)		inch	40.16	39.37		-	40.16	39.37		-
Main Motor(Fixed Speed+Inverter)		HP x P	25×4				30×4
Slide Adjustment Motor		HP x P	1×4				1×4
Window Opening(FBxUD)		inch	24.41×15.75	20.47×13.78		43.31×27.56	26.77×15.75	22.44×13.78		43.31×27.56
Foot Print	1	inch	73.62×77.95	73.62×75.98		87.80×78.74	78.35×84.65	78.35×82.68		99.61×84.25
	2					95.28×78.74				111.42×84.25
Floor Space Required	1	inch	80.91×88.39			90.75×114.49	85.63×98.43			113.78×120.00
	2					102.56×114.49				125.59×120.00
Press Height(w/o Mounts)		inch	147.24	146.46		178.35	158.27	157.48		189.37
Max. Upper Die Weight		LBS	1763			2204	2204			2645
Required Air Pressure		PSI	71				71
Die Cushion (Option)
Capacity		U.S. ton	11.0	-	-	-	11.0	-	-	-
Stroke Length		inch	5.12	-	-	-	5.12	-	-	-
Cushion Pad Area (LR × FB)		inch	27.56×17.72	-	-	-	27.56×17.72	-	-	-

Model			SNS1-330			SNS1-440			SNS1-550
Type			S	H	LT	S	H	LT	LT
Capacity		U.S. ton	330			440			550
Stroke Length		inch	11.02	7.09	15.75	11.81	7.87	15.75	15.75
Strokes per Minute		SPM	20~35	25~50	20~40	20~40	25~50	20~40	20~40
Tonnage Rating Point		inch	0.24		0.28	0.24		0.28	0.28
Die Height		inch	19.69	15.75	24	21.65	17.72	24	24
Slide Adjustment		inch	4.72			4.72			4.72
Slide Area(LRxFB)	1	inch	45.28×31.50		59.06×55.12	49.21×35.43		59.06×55.12	70.87×55.12
	2				70.87×55.12			70.87×55.12	82.68×55.12
Diameter of Shank Hole		inch	Φ2.56			Φ2.56			Φ2.56
Bolster Area(LRxFB)	1	inch	55.12×41.34	55.12×33.46	70.87×59.06	59.06×47.24	59.06×39.37	70.87×59.06	82.68×59.06
	2				82.68×59.06			82.68×59.06	94.49×59.06
Bolster Thickness		inch	7.87			7.87			7.87
Bolster Height(w/o Mounts)		inch	40.94	40.16	-	40.94	40.16	-	-
Main Motor(Fixed Speed+Inverter)		HP x P	40×4			50×4			60×4
Slide Adjustment Motor		HP x P	2×4			2×4			2×4
Window Opening(FBxUD)		inch	29.92×17.72	25.59×13.78	55.12×27.56	32.28×17.72	28.35×15.75	55.12×27.56	55.12×27.56
Foot Print	1	inch	81.50×90.43	81.50×88.46	111.42×90.16	85.43×89.96	85.43×87.99	111.42×90.94	123.23×90.94
	2				123.23×90.16			123.23×90.94	135.04×90.94
Floor Space Required	1	inch	88.78×101.57		125.59×125.91	92.52×111.42		125.59×126.69	137.40×126.69
	2				137.40×125.91			137.40×126.69	149.21×126.69
Press Height(w/o Mounts)		inch	165.35	158.66	196.46	171.26	167.32	202.36	208.27
Max. Upper Die Weight		LBS	2755		3306	2755		4408	4408
Required Air Pressure		PSI	71			71			71
Die Cushion (Option)
Capacity		U.S. ton	15.4	-	-	5.51	-	-	-
Stroke Length		inch	5.51	-	-	27.56×17.72	-	-	-
Cushion Pad Area (LR × FB)		inch	27.56×17.72	-	-	5.51	-	-	-

Model		SNS2-176		SNS2-220		SNS2-275
Type		S	H	S	H	S		H	LT
Capacity	U.S. ton	176		220		275
Stroke Length	inch	7.87	5.12	9.06	5.91	9.84		7.09	13.78
Strokes per Minute	SPM	30~55	40~85	25~45	35~70	22~40		30~60	22~40
Tonnage Rating Point	inch	0.24	0.16	0.28	0.16	0.28		0.2	0.24
Die Height	inch	17.72	15.75	19.69	17.72	21.65		17.72	23.62
Slide Adjustment	inch	3.94		3.94		4.72
Slide Area(LRxFB)	inch	61.42×25.59		72.83×29.53		1	86.61×32.28		86.61×47.24
						2	98.43×32.28		98.43×47.24
Diameter of Shank Hole	inch	Φ2.01×3		Φ2.01×3		Φ2.01×3
Bolster Area(LRxFB)	inch	72.83×29.92		86.61×33.07		1	86.61×32.28		86.61×47.24
						2	98.43×32.28		98.43×47.24
Bolster Thickness	inch	6.3		6.69		7.09
Bolster Height(w/o Mounts)	inch	37.4		39.37		1	43.31		-
						2	45.28
Main Motor(Fixed Speed+Inverter)	kW×P	20×4		25×4		30×4
Slide Adjustment Motor	kW×P	2×4		2×4		2×4
Window Opening(FB)	inch	25.98		29.13		32.28			47.24
Window Opening(UD)	inch	15.75	12.6	17.72	13.78	18.11		13.78	27.56
Foot Print	inch	102.36×56.30		115.35×64.96		1	129.53×70.47		129.53×77.56
						2	145.28×70.47		145.28×77.56
Floor Space Required	inch	106.50×92.32		119.88×98.03		1	133.46×100.59		133.46×107.28
						2	149.21×100.59		149.21×107.28
Press Height(w/o Mounts)	inch	138.19	135.83	152.95	150.79	1	164.57	159.45	177.17
						2	166.54	161.42	179.13
Max. Upper Die Weight	LBS	3086		4408		1	4849		5510
						2	5510
Required Air Pressure	PSI	85		85		85
Die Cushion (Option)
Capacity	U.S. ton	8.8×2	-	11.0×2	-	15.4×2		-	-
Stroke Length	inch	4.33	-	5.12	-	5.51		-	-
Cushion Pad Area (LR × FB)	inch	22.05×14.57×2	-	27.56×17.72×2	-	27.56×17.72×2		-	-

Model		SNS2-330						SNS2-440
Type		S		H		LT		S		H		LT
Capacity	U.S. ton	330						440
Stroke Length	inch	11.02		7.09		13.78		11.81		7.87		15.75
Strokes per Minute	SPM	20~40		25~50		20~40		20~40		25~50		20~40
Tonnage Rating Point	inch	0.28		0.2		0.24		0.28		0.24		0.24
Die Height	inch	21.65		17.72		23.62		23.62		17.72		23.62
Slide Adjustment	inch	4.72						4.72
Slide Area(LRxFB)	inch	1	86.61×35.43			1	86.61×55.12	1	86.61×39.37			1	86.61×55.12
		2	98.43×35.43					2	98.43×39.37
		3	110.24×35.43			2	98.43×55.12	3	110.24×39.37			2	98.43×55.12
		4	122.05×35.43					4	122.05×39.37
Diameter of Shank Hole	inch	Φ2.01×3						Φ2.01×3
Bolster Area(LRxFB)	inch	1	98.43×39.37			1	98.43×59.06	1	98.43×43.31			1	98.43×59.06
		2	110.24×39.37					2	110.24×43.31
		3	122.05×39.37			2	110.24×59.06	3	122.05×43.31			2	110.24×59.06
		4	133.86×39.37					4	133.86×43.31
Bolster Thickness	inch	7.87						7.87
Bolster Height(w/o Mounts)	inch	1	45.28			-		49.21				-
		2
		3	45.28
		4
Main Motor(Fixed Speed+Inverter)	kW×P	40×4						50×4
Slide Adjustment Motor	kW×P	2×4						2×4
Window Opening(FB)	inch	35.43				55.12		39.37				55.12
Window Opening(UD)	inch	19.69		13.78		29.53		21.65		15.75		29.53
Foot Print	inch	1	145.28×73.62			1	133.46×84.65	1	134.25×81.50			1	134.25×85.43
		2	157.48×73.62					2	146.06×81.50
		3	169.29×73.62			2	145.28×84.65	3	157.87×81.50			2	146.06×85.43
		4	145.28×73.62					4	169.69×81.50
Floor Space Required	inch	1	137.40×104.92			1	137.40×110.83	1	139.57×116.34			1	139.57×120.87
		2	149.21×104.92					2	151.38×116.34
		3	161.42×101.38			2	149.21×110.83	3	163.19×116.34			2	151.38×120.87
		4	173.23×101.38					4	175.00×116.34
Press Height (w/o Mounts)	inch	1	177.36		171.46	1	182.68	1	189.76		179.72	1	185.63
		2						2
		3	177.36		171.46	2		3	189.76		179.72	2
		4						4
Max. Upper Die Weight	LBS	1	6171			1	7053	1	6612			1	7053
		2						2
		3	6612			2		3	7053			2
		4						4
Required Air Pressure	PSI	85						85
Die Cushion (Option)
Capacity	U.S. ton	15.4×2		-		-		15.4×2		-		-
Stroke Length	inch	5.51		-		-		5.51		-		-
Cushion Pad Area (LR × FB)	inch	27.56×17.72×2		-		-		27.56×17.72×2		-		-

Model		SNS2-550					SNS2-660	SNS2-880	SNS2-1100
Type		S		H	LT		LT	LT	LT
Capacity	U.S. ton	550					660	880	1100
Stroke Length	inch	11.81		7.87	15.75		15.75	15.75	15.75
Strokes per Minute	SPM	20~40		25~50	20~40		20~35	20~35	20~35
Tonnage Rating Point	inch	0.28		0.24	0.24		0.24	0.24	0.24
Die Height	inch	23.62		17.72	23.62		25.59	25.59	25.59
Slide Adjustment	inch	4.72			5.91		5.91	5.91	5.91
Slide Area(LRxFB)	inch	1	86.61×43.31		1	86.61×55.12	122.05×59.06	122.05×59.06	122.05×66.93
		2	98.43×43.31
		3	110.24×43.31		2	86.61×55.12
		4	122.05×43.31
Diameter of Shank Hole	inch	Φ2.01×3					Φ2.01×3	Φ2.01×3	Φ2.01×3
Bolster Area(LRxFB)	inch	1	98.43×47.24		1	98.43×59.06	125.98×59.06	125.98×59.06	125.98×66.93
		2	110.24×47.24
		3	122.05×47.24		2	98.43×59.06
		4	133.86×47.24
Bolster Thickness	inch	7.87					7.87	7.87	7.87
Bolster Height(w/o Mounts)	inch	49.21			-		-	-	-
Main Motor(Fixed Speed+Inverter)	kW×P	60×4					75×4	100×4	125×4
Slide Adjustment Motor	kW×P	2×4					5×6	5×6	5×6
Window Opening(FB)	inch	43.31			55.12		55.12	55.12	55.12
Window Opening(UD)	inch	21.65		15.75	29.53		29.53	29.53	29.53
Foot Print	inch	1	144.49×85.43		1	144.49×85.43	182.68×124.80	192.13×112.20	192.13×112.20
		2	156.30×85.43
		3	159.45×85.43		2	144.49×85.43
		4	171.26×85.43
Floor Space Required	inch	1	149.61×126.38		1	149.61×125.98	188.98×161.42	204.72×163.39	279.53×177.17
		2	161.42×126.38
		3	164.57×126.38		2	149.61×125.98
		4	176.38×126.38
Press Height (w/o Mounts)	inch	1	197.64	187.8	199.41		230.71	248.03	267.72
		2
		3
		4
Max. Upper Die Weight	LBS	1	7053		7053		11020	15428	15428
		2
		3	7494
		4
Required Air Pressure	PSI	85					85	85	85
Die Cushion (Option)
Capacity	U.S. ton	15.4×2		-	-		-	-
Stroke Length	inch	5.51		-	-		-	-
Cushion Pad Area (LR × FB)	inch	27.56×17.72×2		-	-		-	-

※ For special specifications or requirements of 1100T or above, please contact your local supplier.
※ This specification is subject to change without notice.

Products

SNS Series｜Solid Frame Crank Press

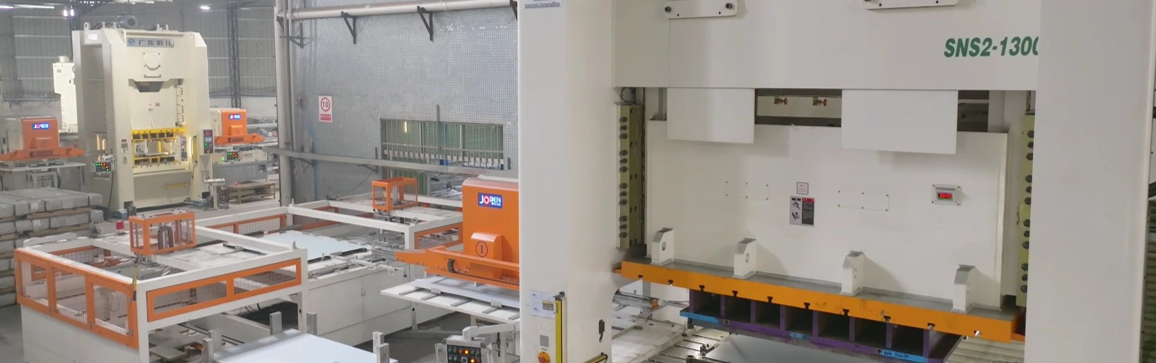

1300T Intelligent Stamping Production Line

One of the largest auto parts manufacturers in China
