Progressive Die

Progressive Die

Straight Side Crank Servo Press (SDG Series)

Straight Side Crank Servo Press (SDG Series)

The best features for model SDG includes drawing, forming, blanking, punching and cutting of automotive parts, which comply and satisfy the trend and application of steel parts with light weight but high tensile strength in modern automotive industry. In addition, by combining progressive die with pendulum curve, the productivity can possibly be doubled, which saves more than 50% of energy.
Solid Frame Crank Servo Press (SD Series)

Solid Frame Crank Servo Press (SD Series)

Suitable for application in auto parts, consumable electronics and household appliances. These can require perfect forming. By combining progressive die with pendulum curve, the productivity can possibly be doubled, which saves more than 50% of energy. Furthermore, automated transfer production line can also be added to upgrade the productivity.
Straight Side Crank Press (SAG Series)

Straight Side Crank Press (SAG Series)

This model adopts design of central driving and 8-point guided slide that increase eccentric loading capability by 20%. It is applicable for blanking, punching, bending and forming process of large multi-process thin panels, which can even work independently, connectively or paired up with the transfer device for production over the whole line.
Straight Side Crank Link Press (SLG Series)

Straight Side Crank Link Press (SLG Series)

This series is the prime choice for large parts forming, which makes it applicable for automotive parts forming. The crank shaft and connecting rods are adopted to drive the gear component. The soft contact during forming extensively reduces vibration, noise and heat, as well as extending die lifetime. The design of low energy consumption can effectively save more than 20% of energy.
Solid Frame Crank Press (SNS Series)

Solid Frame Crank Press (SNS Series)

This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical Robot or added with transfer system.

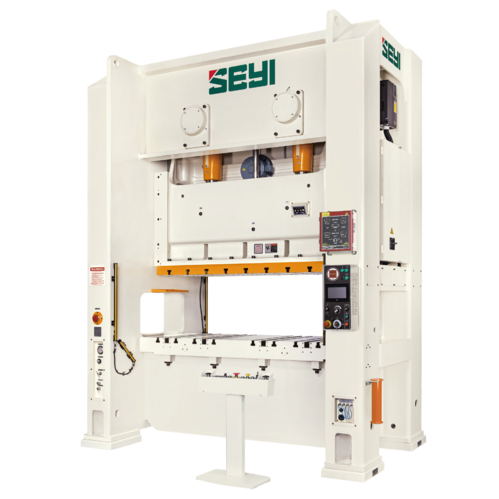

Solid Frame Crank Link Press (SLS Series)

Solid Frame Crank Link Press (SLS Series)

This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical Robot or added with transfer system.

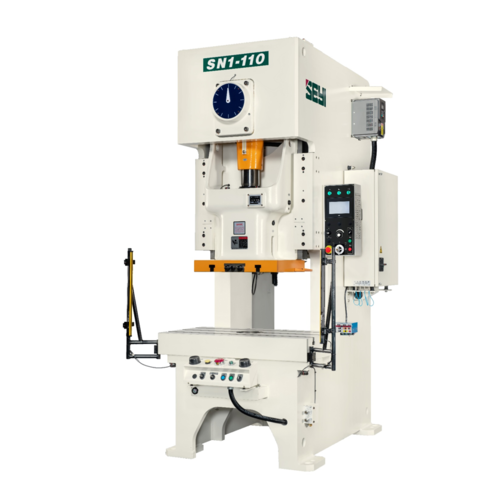

C Frame Crank Press (SN Series)

C Frame Crank Press (SN Series)

This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical arm or added with transfer system.

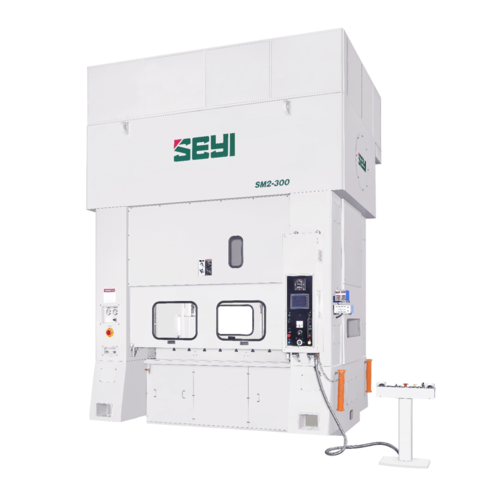

Progressive Stamping Link Press (SM2 Series)

Progressive Stamping Link Press (SM2 Series)

This is generally applicable for blanking, punching, bending and forming process on small size but large quantity of parts produced from progressive die pressing, which can connect with progressive die or added with transfer system.
